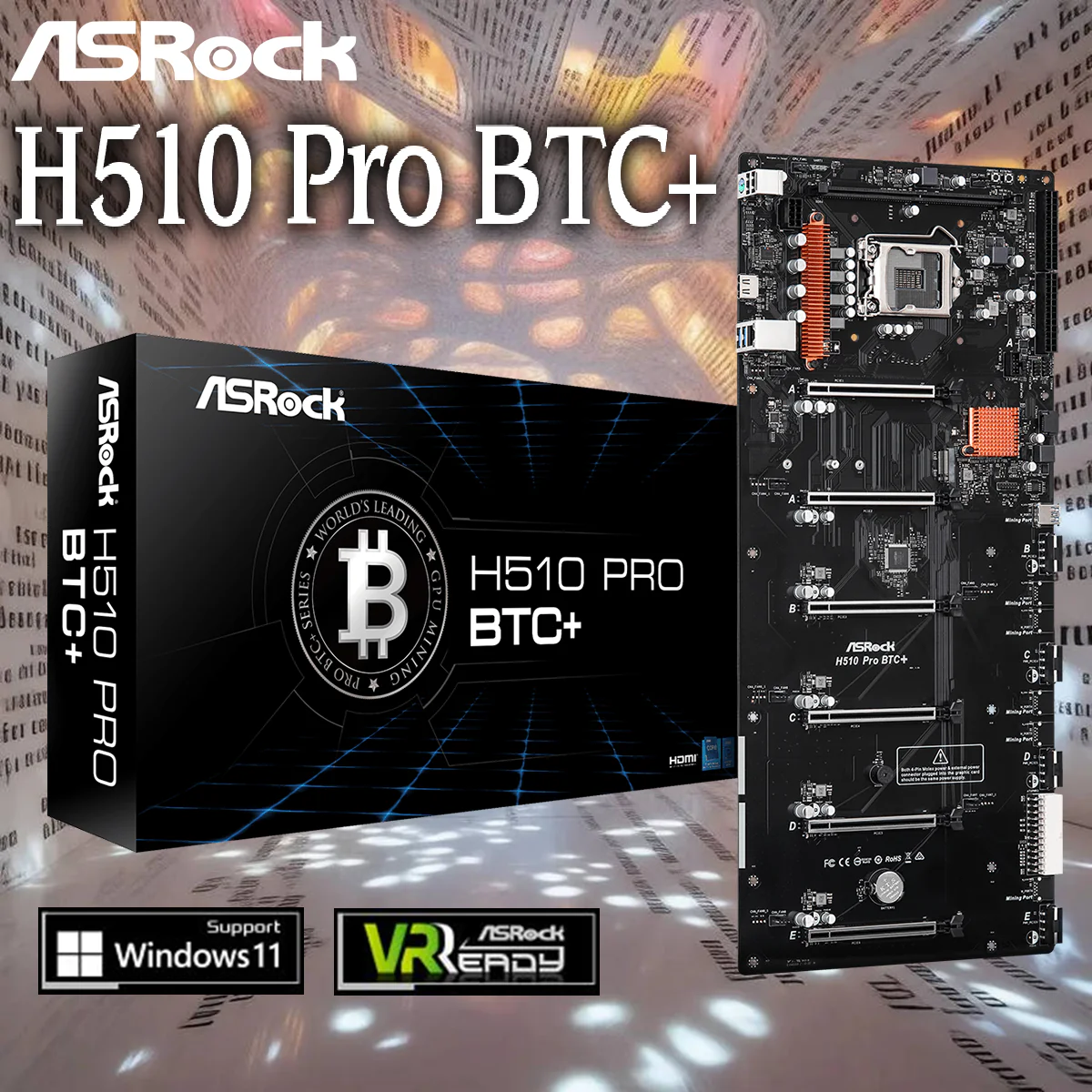

ASRock H510 Pro BTC+ Mining Motherboard With 6 PCIe 3.0 x16 Slots, 10th/11th Gen Intel CPU Support, DDR4 3200MHz, M.2 SATA, HDMI, Dual 24-Pin ATX Power, Intel Gigabit LAN
170 $
Categories: COMPUTER PARTS, Motherboards

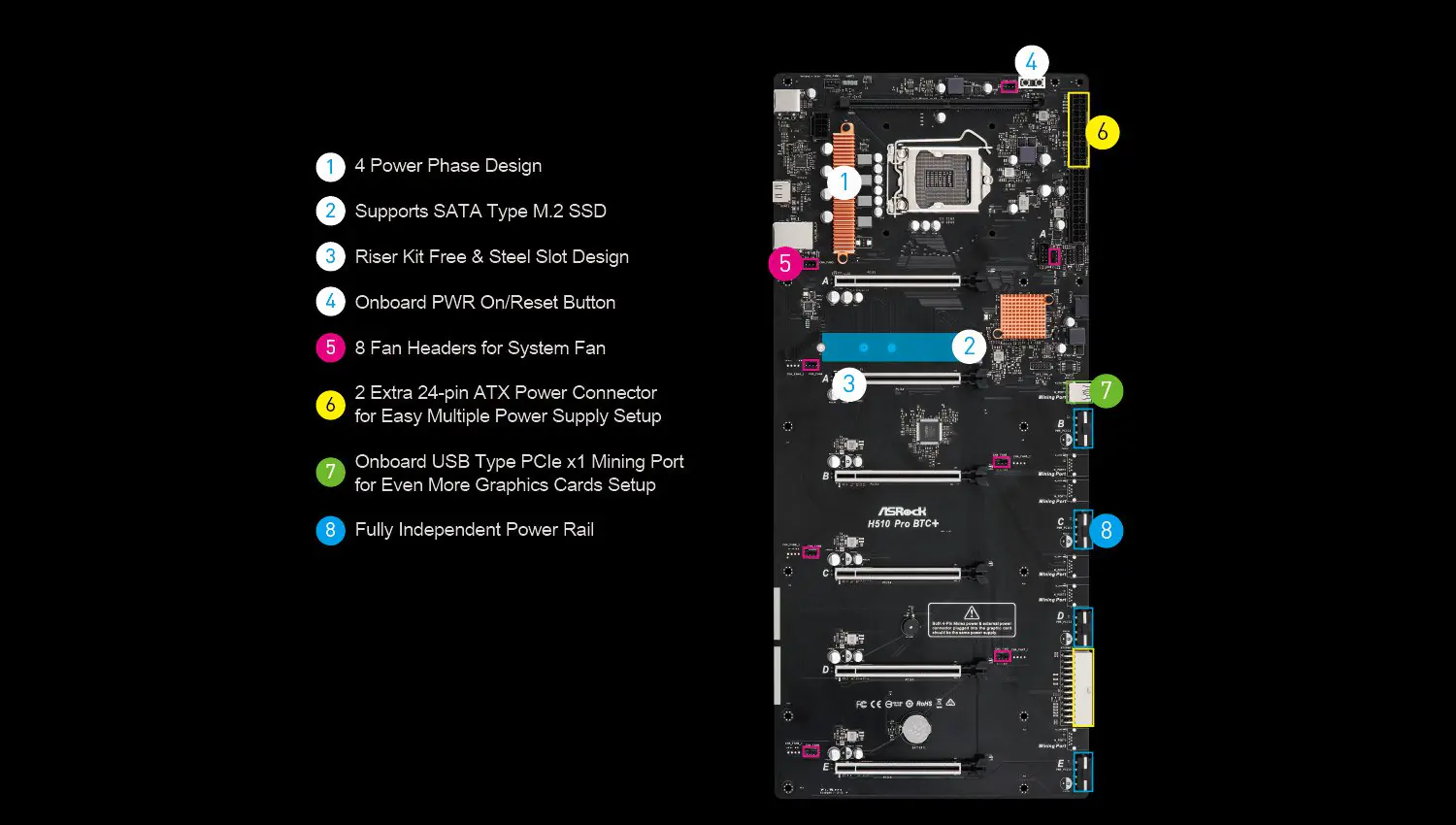

⚙️ Expert Features – For Hardcore Miners Only
- 10th & 11th Gen Intel® Core™ CPU Support – Yes, your LGA1200 chips still have a home!
- Six PCIe 3.0 x16 Slots + 1 Mining USB Port – That’s seven chances to max your GPU grid.
- Riser Kit-Free Design – Plug GPUs directly into the board for max stability.
- Smart PCIe State Detection – Check GPU health right from the POST screen.
- Steel Reinforced PCIe Slots – No wobbly monsters here—these slots are GPU-weightlifting champs.
- Dual 24-Pin ATX Power Connectors – Because power-hungry rigs shouldn’t flicker like old lightbulbs.
- Onboard Power & Reset Buttons – Essential for open-frame builds and quick troubleshooting.
- High Density Glass Fabric PCB + Spike Protection – Extra resistance against humidity and rogue electrons.
- Intel® Gigabit LAN – Solid, stable, and built for long uptime sessions.
- Sapphire Black PCB Aesthetic – Goth miner aesthetic? Check.
- M.2 SATA + 1x SATA3 Port – Fast storage options for OS and wallet files.
- USB Type PCIe x1 Mining Port – Sneaky way to plug in just one more GPU.
📊 Expert Specs – You Asked for It
| Spec Category | Details |
|---|---|
| CPU Socket | LGA1200 |
| Supported CPUs | 10th/11th Gen Intel Core™, Pentium®, Celeron® |
| Chipset | Intel® H510 |
| Memory | 1x DDR4 DIMM (up to 32GB, 3200MHz max*) |
| Graphics Output | HDMI 2.0 (4K @ 60Hz for 11th Gen) |
| Expansion Slots | 6 x PCIe 3.0 x16 (1 @ x16, 5 @ x1), 1 Mining Port (x1) |
| Storage | 1x SATA3, 1x M.2 SATA (Type 2260/2280/22110) |
| LAN | Intel® I219V Gigabit LAN |
| USB Ports | 2x USB 3.2 Gen1, 4x USB 2.0 |
| Power Connectors | 2x 24-pin ATX, 1x 8-pin 12V, 4x 4-pin PCIe |
| Cooling Support | 1x CPU Fan, 8x Chassis Fans (4-pin) |
| Form Factor | ATX (50.1 x 22.4 cm) |
| Special Perks | Onboard Power/Reset Buttons, PCIe Steel Slots, Digi Power, Full Spike Protection |
