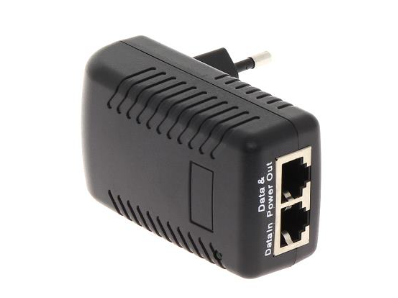

24V (1A) 10/100 mbs PoE adapter, EU type plug

24V (1A) 10/100 mbs PoE adapter, EU type plug

5 $

Quantity
Categories: ,

This PoE injector is a simple and convenient power supply equipment for PoE or Non PoE devices via only an Ethernet cable, which will save your trouble about power line cabling and save cost.

  • Power remote equipment through CAT 5 Ethernet cable up to 100M
  • Autoranging switching power supply 100~240V AC
  • Short circuit, over-current, and over-voltage protection
  • Reliable 24W passive POE output
  • Compact, portable size with convenient wall plug design
  • 24V-1A Wall Plug POE Injector Ethernet Adapter IP Phone/Camera Power Supply
* The compact, wall-mountable design makes it easy to install the adapter into areas where space is limited, and can be installed in seconds with no configuration required.

Specification:

Input Voltage (AC): 100- 240Vac (nominal)
Input Frequency Range: 47 Hz(min) ~ 63 Hz(max)
Output Voltage (DC): 24 V (22.8-25.2)
Output Rating: 1A (24W)
Operating Temperature: -10°C ~ +40°C
Storage Temperature: -30°C ~ +80°C
Operating Humidity: 10%~95% non-condensing
Storage Humidity: 10%~95% non-condensing
Weight: 90 g
Certification: CE

SWITCHING ADAPTER 24V 1A POE
Connectors view:
SWITCHING ADAPTER 24V 1A POE
