Expert Features

• Extended Transmission Distance: Single Cat5e/6/7 cable supports signal transmission up to 200 meters (656ft) without loss of quality.
• Full HD and 4K Support: Transmits high-definition video in 1080P and 4K resolution, with full 3D support and color depths of 8/10/12-bit.
• Audio Support: Supports high-quality audio formats, including DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3, and DSD.
• Plug-and-Play Design: No need for additional software or drivers; simple plug-and-play setup.
• HDMI 1.3 & HDCP Compliant: Compatible with HDMI 1.3, HDCP encryption, and full 3D/1080P resolutions.

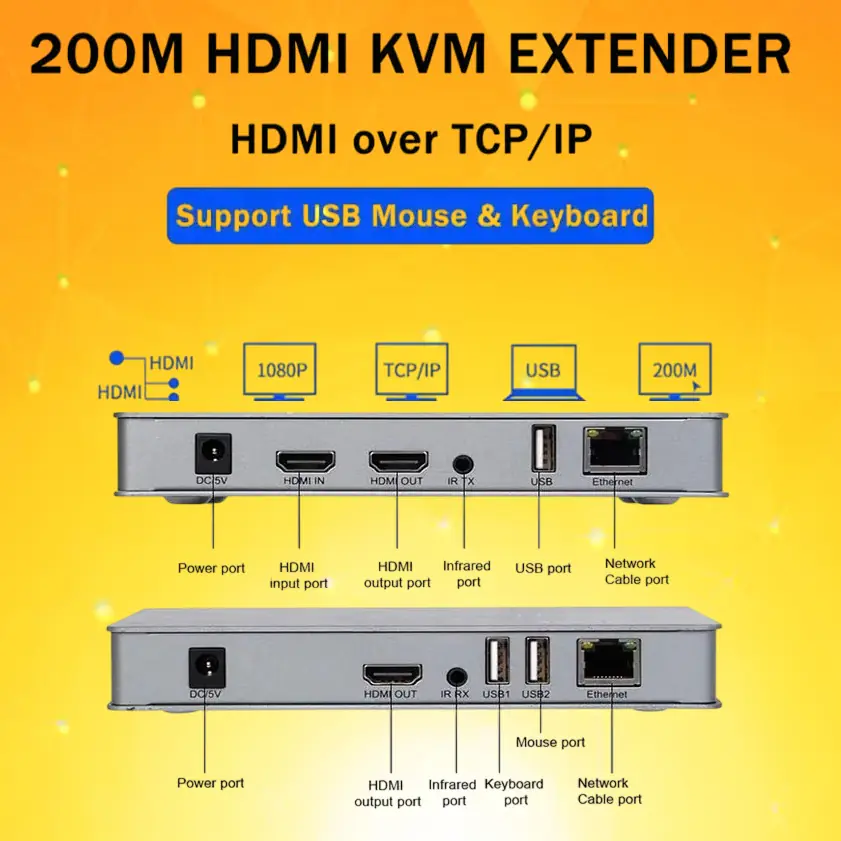

• KVM Functionality: Includes USB ports for keyboard and mouse extension, ideal for video-conferences, home theaters, and educational environments.
• Durable Construction: Metal casing with 24K gold-plated shielding connectors for maximum thermal efficiency and signal integrity.
• Cost-Effective Solution: Utilizes Cat5e/6/7 cables to break distance limitations and save on additional HDMI cable costs.

 Expert Specs

• Resolution Support: 3D, HD, and 4K*2K
• Max Baud Rate: 4.95Gbps
• Input Video Signal: 0.5~1.5Volts p-p
• Output DDC Signal: 5Volts p-p (TT1L)
• Max Working Current: 1000mA
• HDMI Output: 24/50/60fs, 1080P, 1080i, 720P, 576P, 576i, 480P, 480i
• Audio Formats Supported: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD
• Transmission Distance: Up to 200 meters (656 feet) over Cat5e/6/7 cable
• Signal Support: HDMI 1.3, HDCP, Full 3D, and 1080P
• Power Supply: AC power adapter
• Construction: Metal case with 24K gold-plated connectors for superior signal quality
